Hispeedido IPS V5 Drop-In OSD LCD Kit for Game Boy Advance (White)

Name: Hispeedido IPS V5 Drop-In OSD LCD Kit for Game Boy Advance (White)
Brand: Hispeedido
SKU: GBASP-IPS-V5-WHITE
Price: 69 EUR
Availability: InStock

Category: Displays

Farbe: White

€69.00

Incl. VAT , excl. Shipping Cost

SKU	GBASP-IPS-V5-WHITE
Color	White
Device	Game Boy Advance SP
Brand	for Nintendo
Manufacturer	Hispeedido
Pairs best with	[GBA SP] Hispeedido V5 Laminated IPS Kit

Add to Wish List Compare

Details

Game Boy Advance SP V5 LCD Upgrade Kit by Hispeedido

The V5 IPS Kit from Hispeedido is a drop-in solution compatible with all shell models, no modifications are necessary - insert, connect, done! With the on-screen menu (OSD), various screen effects such as Normal, Retro Pixel, Scanline 1 and Scanline 2 can be activated and the brightness and colors can be adjusted. There are 15 different brightness levels and 8 color modes for configuration. With Frame Blending On/Off you can decide for yourself whether frames should be blended or not (necessary in some games to achieve the best result). There are also optional touch sensors that can be used to control the IPS kit - soldering is therefore optional.

All features combined make the Game Boy Advance SP IPS LCD Kit a convincing product that will delight every fan of the cult console!

Features

High-contrast picture with rich colors thanks to modern IPS LCD technology
Compatible with all Game Boy Advance SP models (AGS101 and AGS001)
On-screen menu (OSD, soldering required)
3 inch 720 x 480 pixel LCD (9 pixels to 1 pixel)
Display glass industrially applied - no dust inclusions, easy installation
Drop-in, no modifications required
Screen effects: Normal, Retro Pixel, Scanline 1, Scanline 2
15 brightness levels
8 color modes
Frame blending on / off
Touch sensors (soldering optional)

Includes

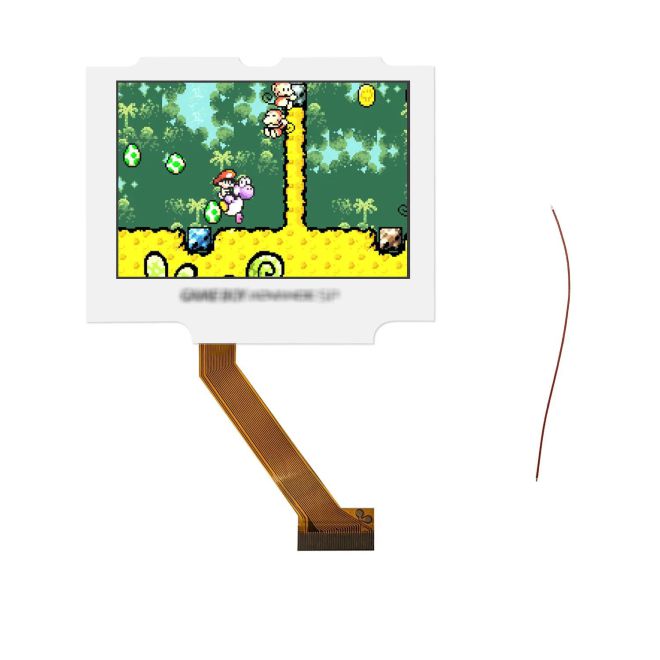

1 x V5 IPS kit (display glass, LCD, PCB and LCD cable in one unit)
1 x wire

Tips

The kit is compatible with any shell
To be able to use the OSD, the enclosed wire must be soldered(see instructions)

Control

Long press on left touch sensor: display changes color palettes by available
Tap on the right touch sensor: Brightness control

With solder connection

Short press on brightness button: Brightness control
Long press on brightness button (5 seconds): Activates OSD
In OSD: long press on button activates menu item, short press on button configures current option

Instructions

Installation instructions

Pairs well with

Hints

The mod / installation requires basic technical knowledge and appropriate tools.
ATTENTION: The Display must be tested BEFORE installation! Before you install the LCD kit, you first need to test it (dry run). It is important that the LCD is tested outside the shell BEFORE installation so that damage caused by the installation can be ruled out. Likewise, no adhesives must have been applied, LCD frames used or soldering work carried out. The LCD is very fragile and can be destroyed by even slight pressure. Complaints about kits that have already been installed will unfortunately have to be rejected without exception!
This item is a spare part from a third-party manufacturer, not an original product. Color and shape may differ from the original product!
